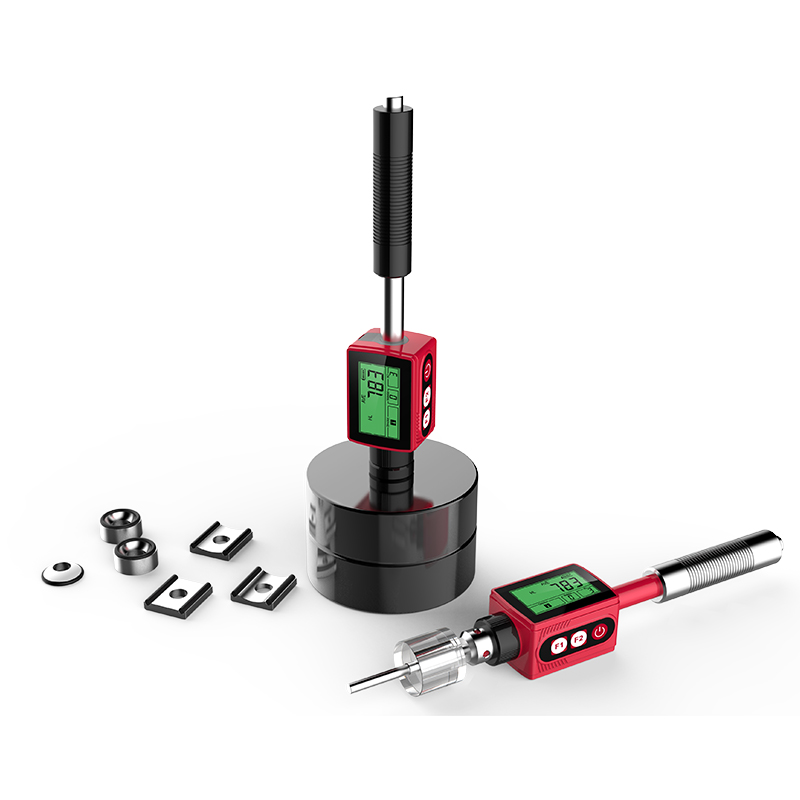

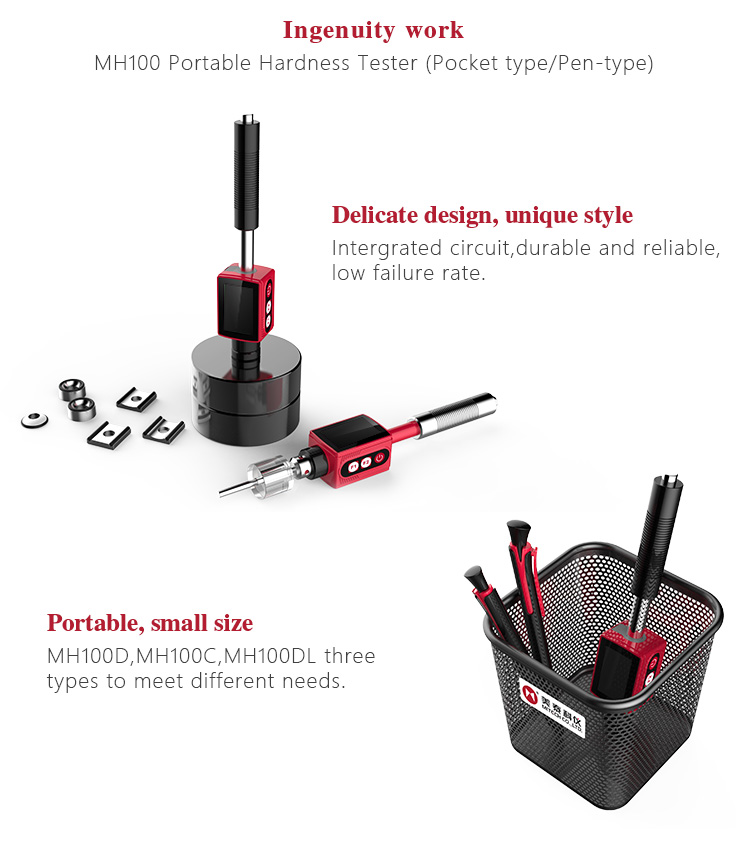

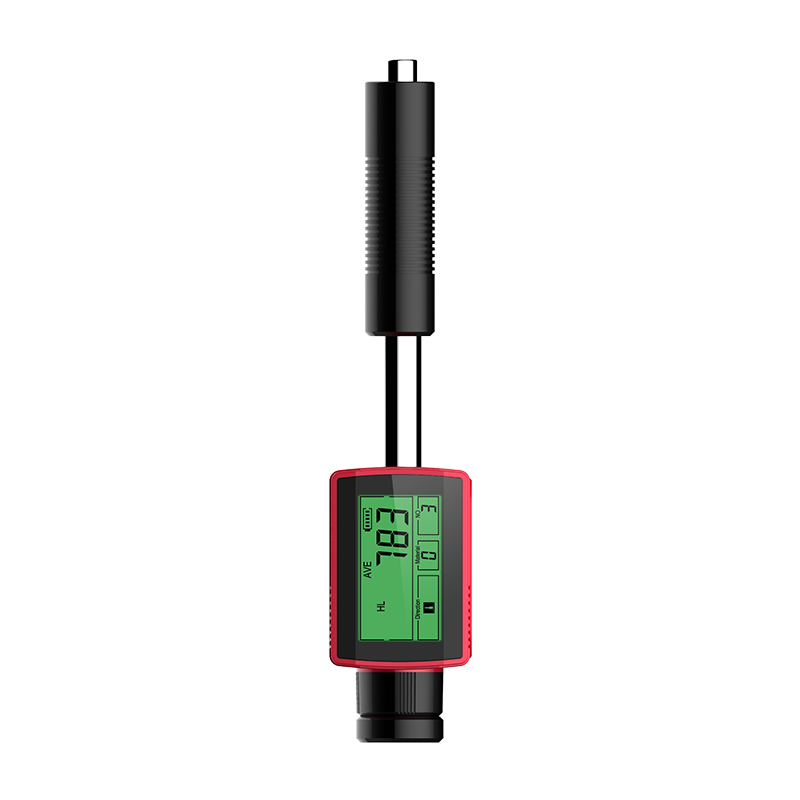

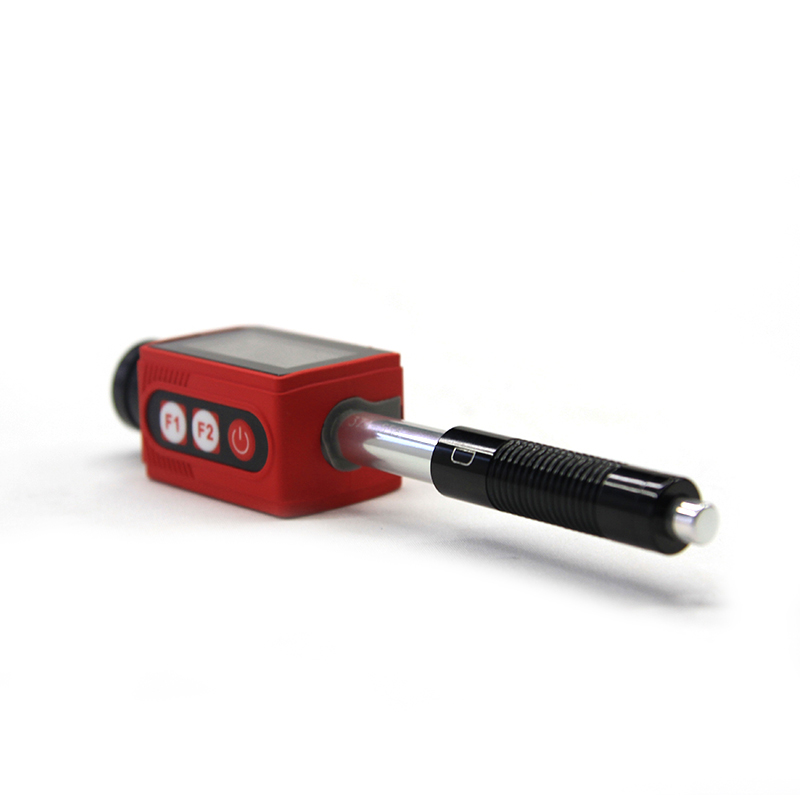

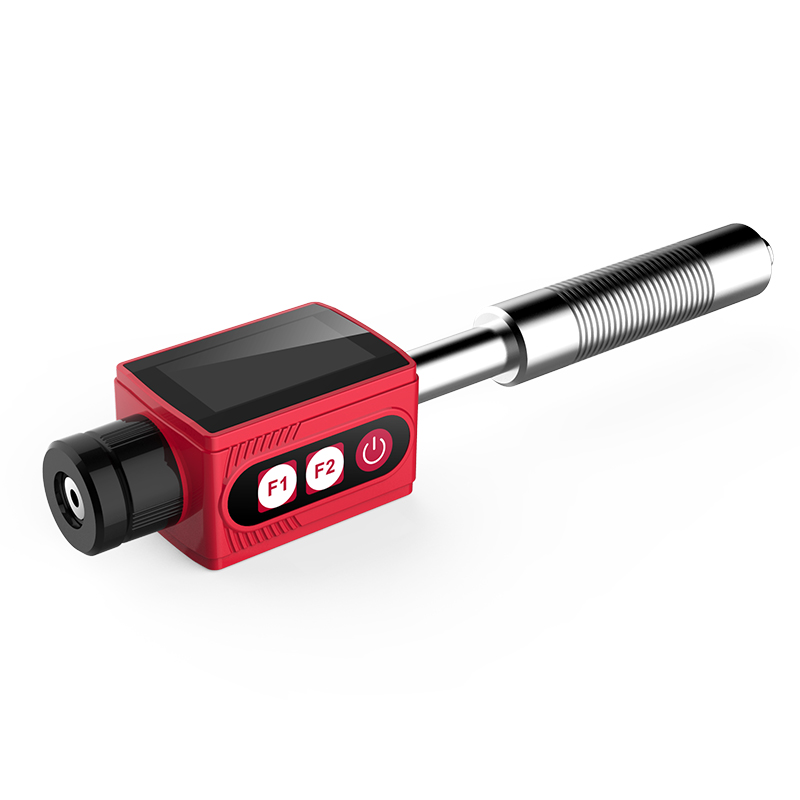

Product OverviewMH100 series pocket hardness meters, also known as pen-type hardness tester, based on Leeb hardness measuring principle, quick and easy on-site test the hardness of series metal materials, support free conversion between Richter, Brinell, Rockwell hardness scale and others,integrated compact design, small size, portable, highly integrated, stable and reliable performance, supporting data transfer and print the stored function. Widely used in failure analysis of metal processing and manufacturing, special equipment, permanent assembly, inspection and other fields. Particularly suitable for large parts and non-removable part of the site hardness testing. It is professional precision instrument to improve the pass rate of production and cost savings .

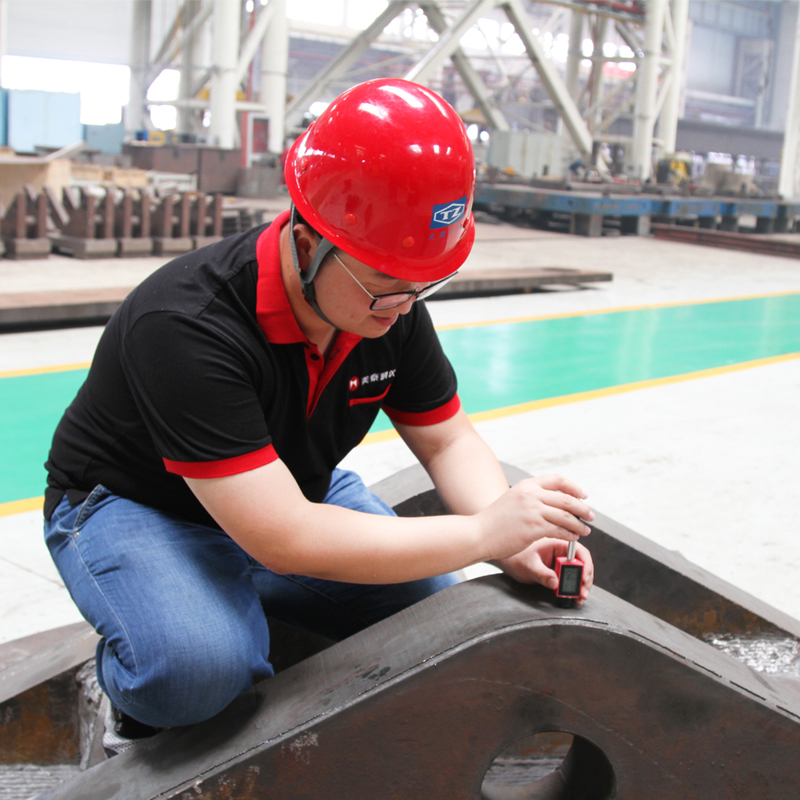

Function & applicationDie cavity of molds
Bearings and other parts
Failure analysis of pressure vessel, steam generator and other equipment

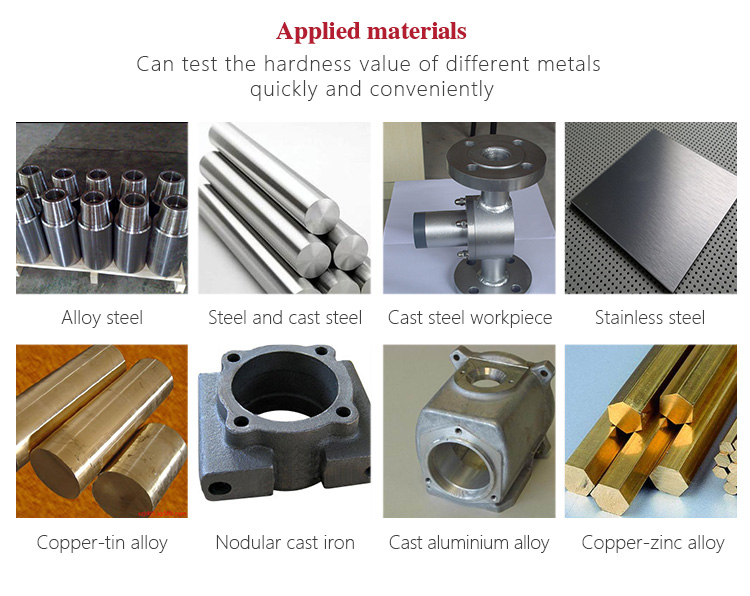

Heavy work piece
The installed machinery and permanently assembled parts.
Testing surface of a small hollow space
Requirements of formal original record for test results
Material identification in the warehouse of metallic materials
Rapid testing in large range and multi-measuring areas for large-scale work piece

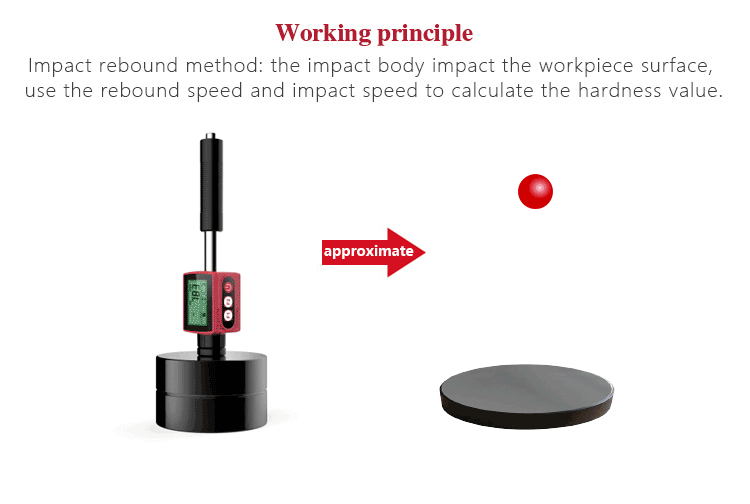

Working PrincipleThe energy quotient is quoted in the hardness unit HL and is calculated from comparing the impact and rebound velocities of the impact body. It rebounds faster from harder samples than from softer ones, resulting in a greater energy quotient which is defined as 1000×Vr/ Vi.
HL=1000×Vr/ Vi
Where:
HL— Leeb hardness value
Vr — Rebound velocity of the impact body
Vi — Impact velocity of the impact body
Working ConditionsWorking temperature：- 10℃～＋50℃；
Storage temperature：-30℃～＋60℃
Relative humidity: ≤90％；
The surrounding environment should avoid of vibration, strong magnetic field, corrosive medium and heavy dust.
Instrument FeaturesBased on the principle of Leeb hardness testing theory. It can measure the Leeb hardness of all metallic
materials.

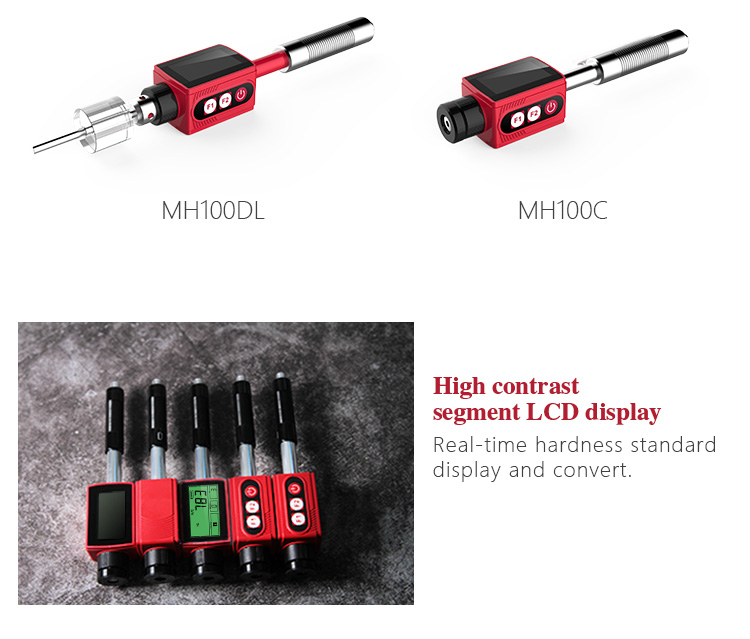

High-contrast Segment LCD ，easy to use
Support Steel ,when using D sensor to test steel,it can show HB directly.
Software calibration automatically.
100 groups (impact times 32 ~ 1) hardness measurements, each set of data includes single testing value,average value, measurement date / time, impact direction, frequency, material, hardness, and other information.

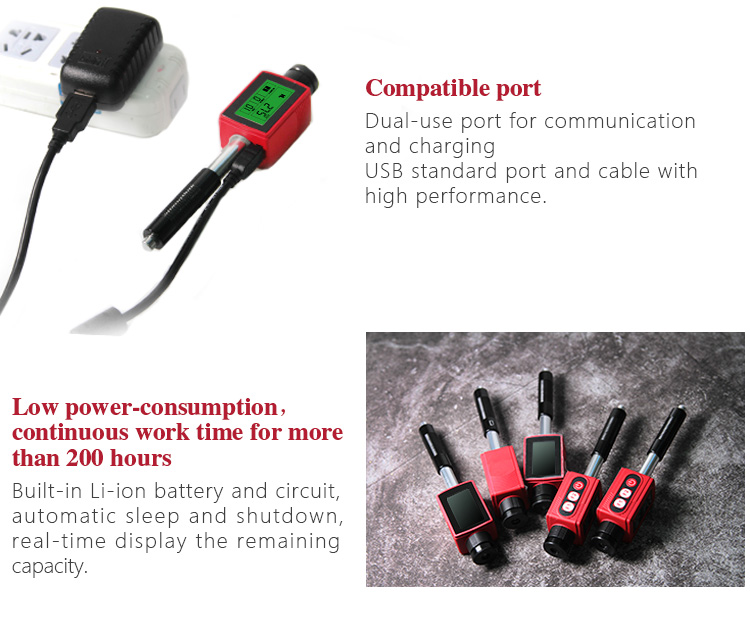

Real-time display the remaining battery power, charging progress is displayed while charging.
USB interface to PC for data communication
Data processing software can do transmission measurements, the measured value storage management, statistical analysis of the measured value, the measured value of the print report and batch set the instrument parameters .
Integrated compact design, small size, portable, highly integrated, stable and reliable performance, suitable for harsh environment field operations, prevent from vibration, shock and electromagnetic interference.

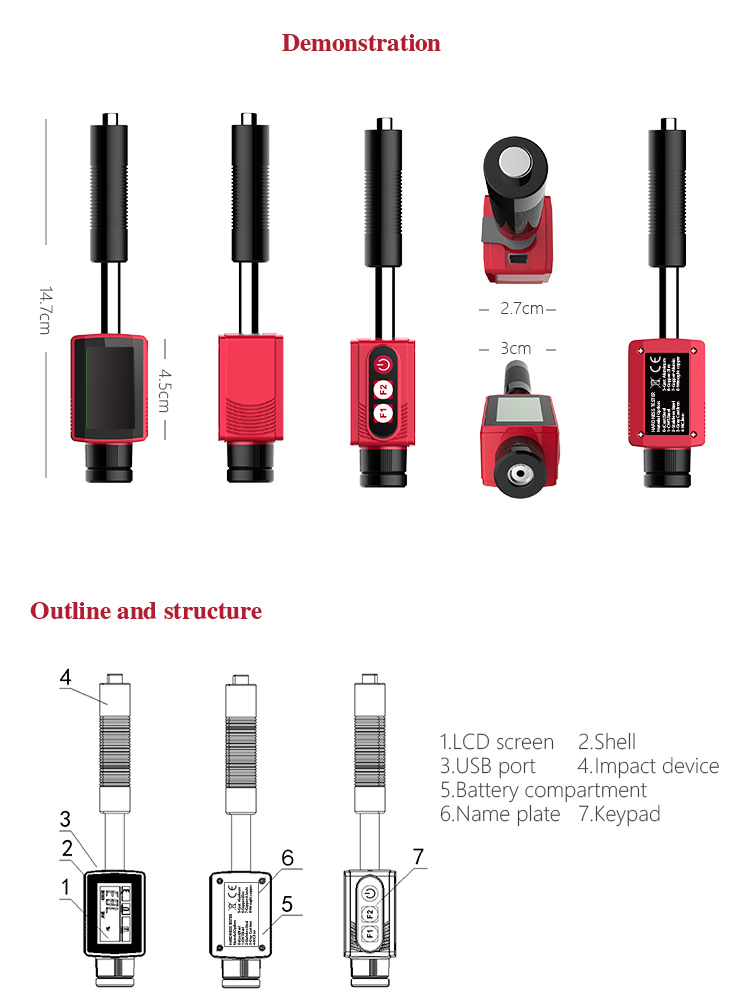

Dimension:148mm×33mm×28mm

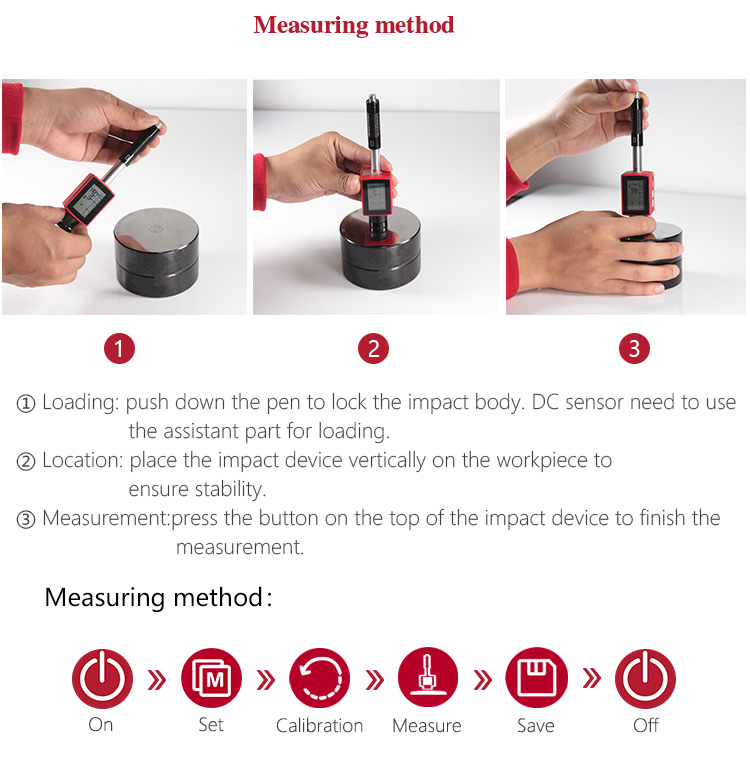

Operating Method and Attentions1 Start-Up
Press the power key to start up the instrument. The instrument then comes into working mode.
2 Loading
Pushing the loading-tube downwards until contact is felt. Then allow it to slowly return to the starting position or using other method locking the impact body.
3 Localization
Press the impact device supporting ring firmly on the surface of the sample, the impact direction should be vertical to the testing surface.
4 Testing
-Press the release button on the upside of the impact device to test. The sample and the impact device as well as the
operator are all required to be stable now. The action direction should pass the axis of the impact device.
-Each measure area of the sample usually need 3 to 5 times of testing operation. The result data dispersion should not
more than mean value±15HL.
-The distance between any two impact points or from the center of any impact point to the edge of testing sample
should conform to the regulation of Table 4-1.
-If want accurate conversion from the Leeb hardness value to other hardness value, contrastive test is needed to get
conversion relations for the special material. Use inspection qualified Leeb hardness tester and corresponding
hardness tester to test at the same sample respectively. For each hardness value, each measure homogeneously 5
points of Leeb hardness value in the surrounding of more than three indentations which need conversion hardness,
using Leeb hardness arithmetic average value and corresponding hardness average value as correlative value
respectively, make individual hardness contrastive curve. Contrastive curve at least should include three groups of
correlative data.
Type of Impact Device
Distance of center of the two indentations
Distance of center of the indentation to sample edge
Not less than (mm)
Not less than (mm)
D
3
5
DL
3
5
C
2
4
5 Read Measured Value
After each impact operation, the LCD will display the current measured value, impact times plus one, the buzzer would alert a long howl if the measured value is not within the valid range. When reaching the presetting impact times, the buzzer will alert a long howl. After 2 seconds, the buzzer will alert a short howl, and display the mean measured value.

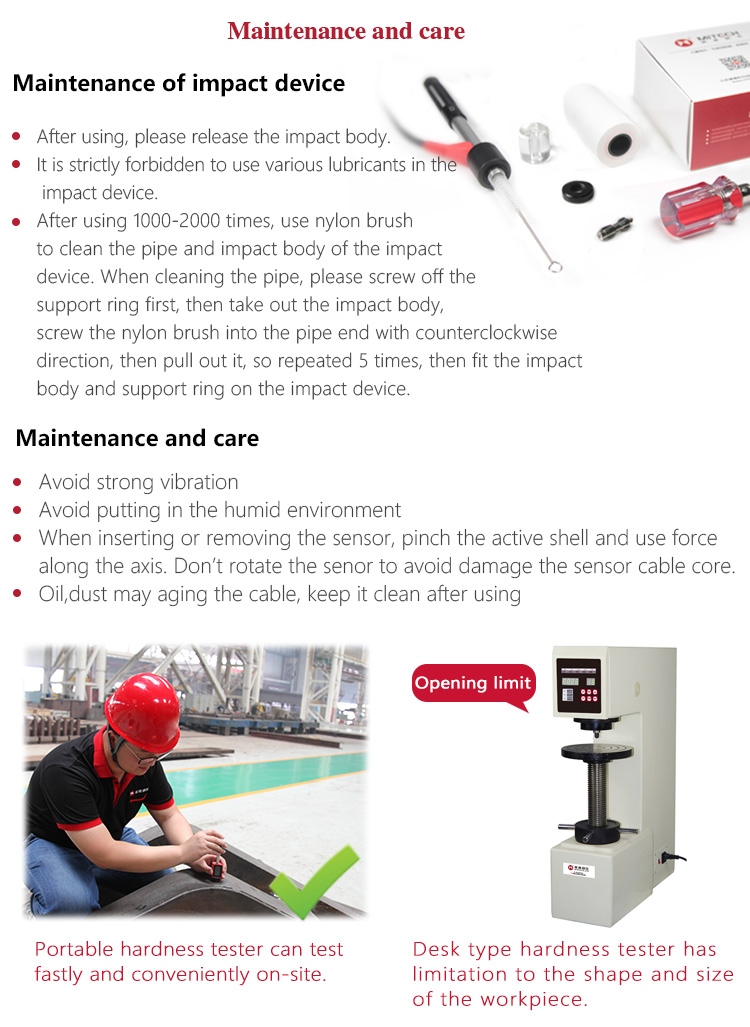

Instrument MaintenanceAfter the impact device has been used for 1000 to 2000 times, please use the nylon brush provided to clean the guide tube and the impact body. Follow these steps when cleaning the guide tube,
1.unscrew the support ring
2.take out the impact body
3.spiral the nylon brush in counterclockwise direction into the bottom of guide tube and take it out for 5 times
4.install the impact body and support ring when complete.
Release the impact body after use.
Any lubricant is prohibited inside the impact device.
-
-

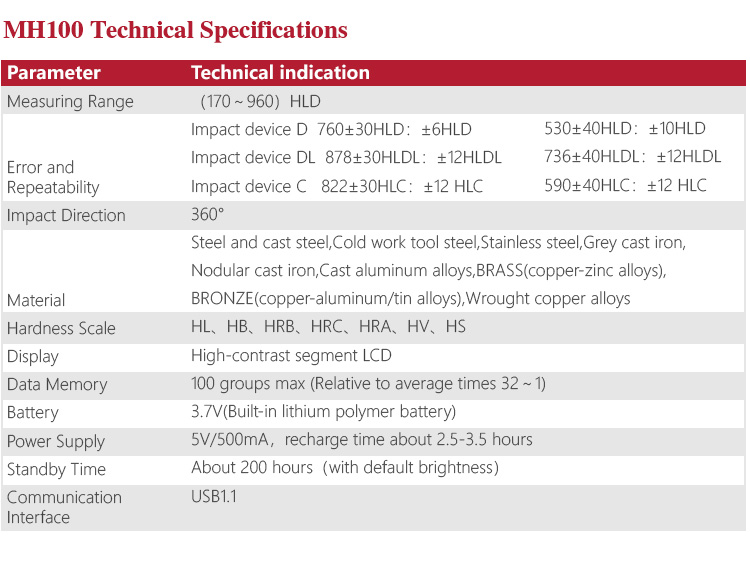

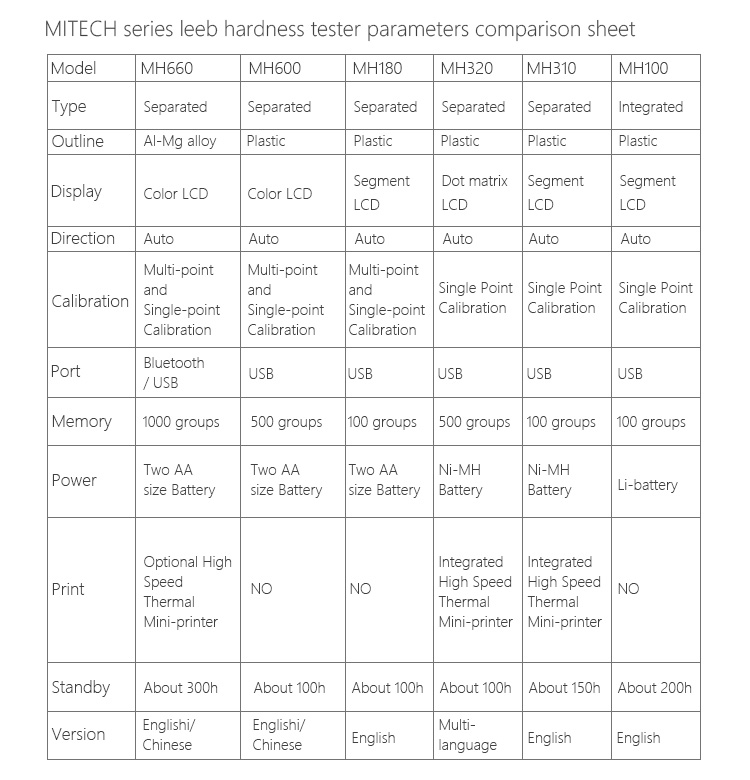

Measuring range （170～960）HLD Impact direction ?vertically downward, oblique, horizontal, oblique, vertical upward, automatically identify Error Impact device D：±6HLD Repeatability Impact device D：±6HLD Material Steel and cast steel,Cold work tool steel,Stainless steel,Grey cast iron,Nodular cast iron,Cast alum Hardness Scale HL、HB、HRB、HRC、HRA、HV、HS Min depth for harden layer D≥0.8mm；C≥0.2mm Display High-contrast Segment LCD Storage up to 100 groups（Relative to average times 32～1） Calibration SIngle point calibration Data printing Connect PC to print Working voltage 3.7V（Built-in lithium polymer battery） Power supply 5V/500mA；recharge for 2.5～3.5 h Standby period About 200h（without backlight） Communication interface USB1.1 Working language Chinese Shell meterial ABS engineering plastic Dimensions 148mm×33mm×28 mm Total weight 4.0KG PC software Yes -

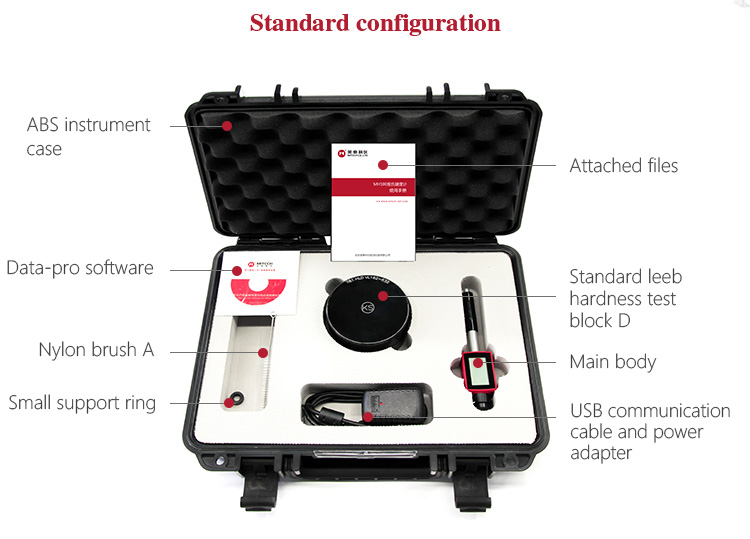

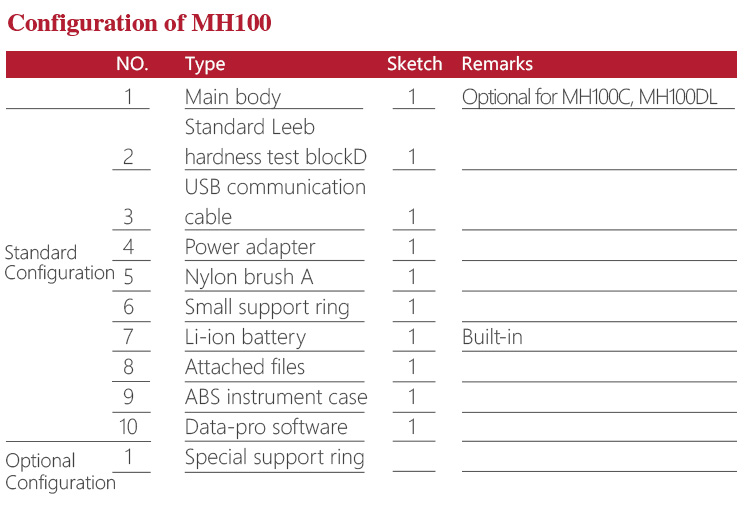

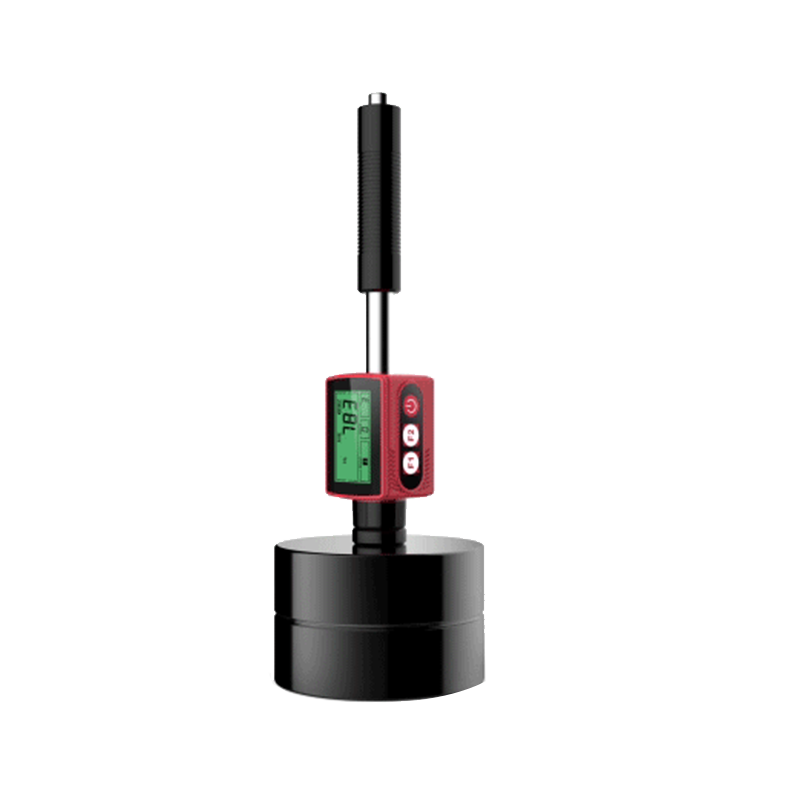

D Type Standard Hardness Block The D type standard hardness block is the standard configuration for Mitech series portable leeb hardness testers. With size of 90x55mm and weight of 2.67kg.It is mainly used to judge whether the measuring error of leeb hardness tester is in the permitted range by national standards or international standards. Each standard hardness block is engraved with the serial number and hardness values which are consistent with qualified certificates one by one, to ensure the traceability for the national standards or International standards. The standard block is specially made with plating harden layer process. With high quality material, its hardness value is stable and reliable. Strictly made accordance with related standards, the D type hardness block is mainly used for the calibration and verification of the D type impact device. It can also be applied to the C, DC, D+15, DL and other types of impact devices. With conversion table, it can get relevant standard reference value. Mitech standard hardness block D type is the standard basis for daily hardness testing and calibration application, the essential accessories to ensure the accurate hardness measurement.
DataPro software Data processing software, the standard configuration for the MH200 / MH500 / MH600 / MH660,it can quickly and conveniently do data exchange and parameter setting with PC .
It has rich features like measurement storage management, statistical analysis of measured value, printing measurement report and so on. It is suitable for steel manufacturing, ship-building, automobile manufacturing, aircraft manufacturing, high pressure vessels, electric devices, bearings, standard parts, metal textile accessories and instrumentation accessories and production enterprises related with metal material products. With the analysis results provided by the software, it can make the process of quality control has more scientific basis and higher traceability. Improving the quality of enterprise information management level. it is the effectively guarantee for enterprise to analyse the product qualification rate and improve the quality monitor.The software can also be used as effective tools in scientific research units related with metal materials, manufacturing plants, universities and other departments engaged in theoretical teaching, experimental analysis and basic scientific research.
Attached files Mitech Series portable leeb hardness testers with customized attached files including product certificate, warranty card, product manual, packing list. The attached files adopt the special printed paper. The manual is with graphic design, beautiful, easy to understand, easy to save for a long time.
Note: The electronic version of Mitech attached files can be downloaded from www.meijiausa.com.

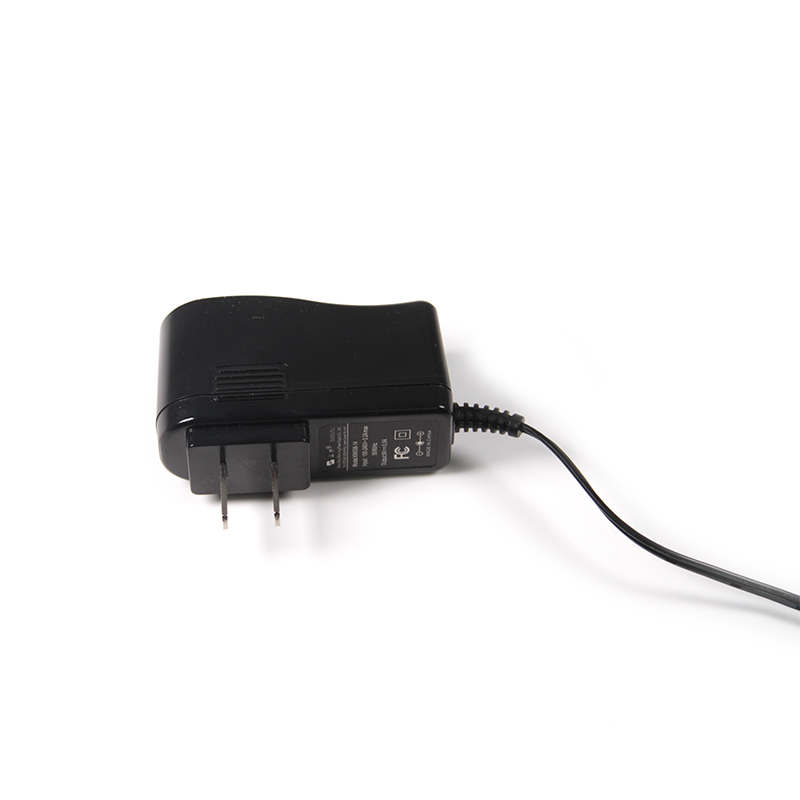

Battery charger Suitable for the special battery charging for MH500 / MH310 portable Leeb hardness tester

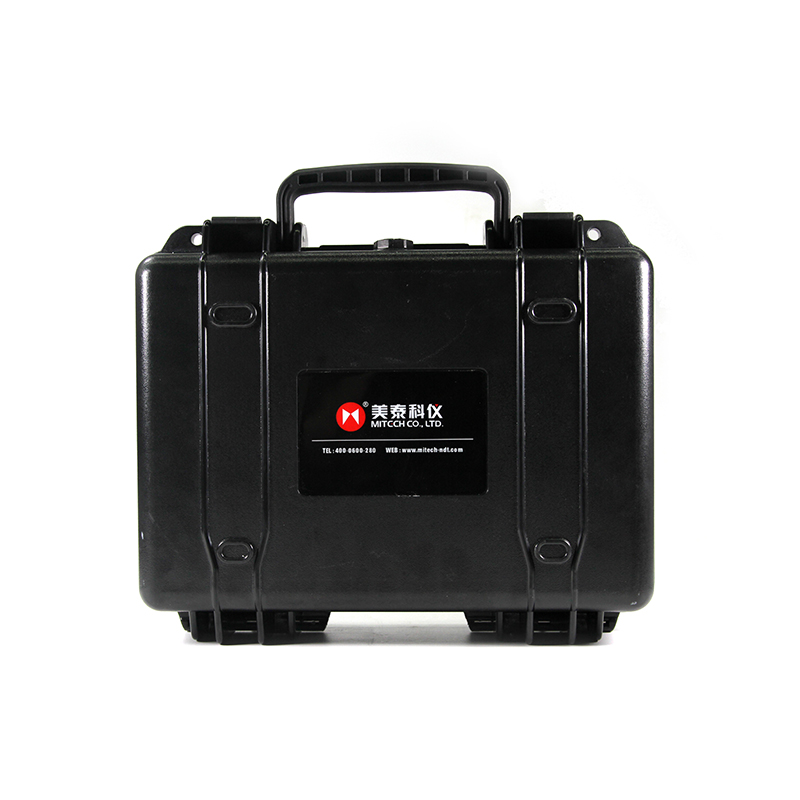

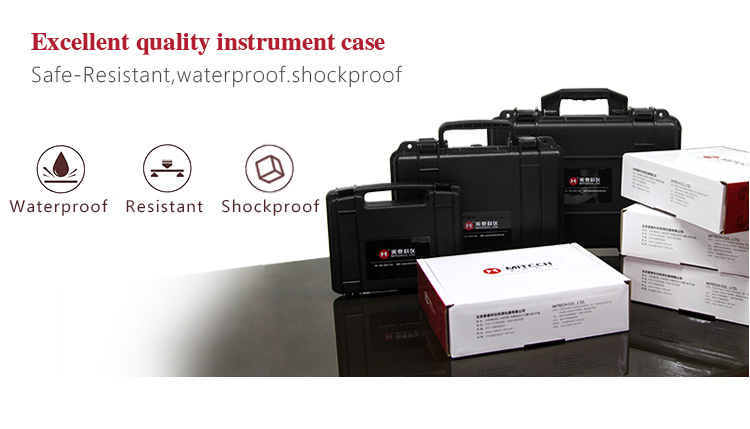

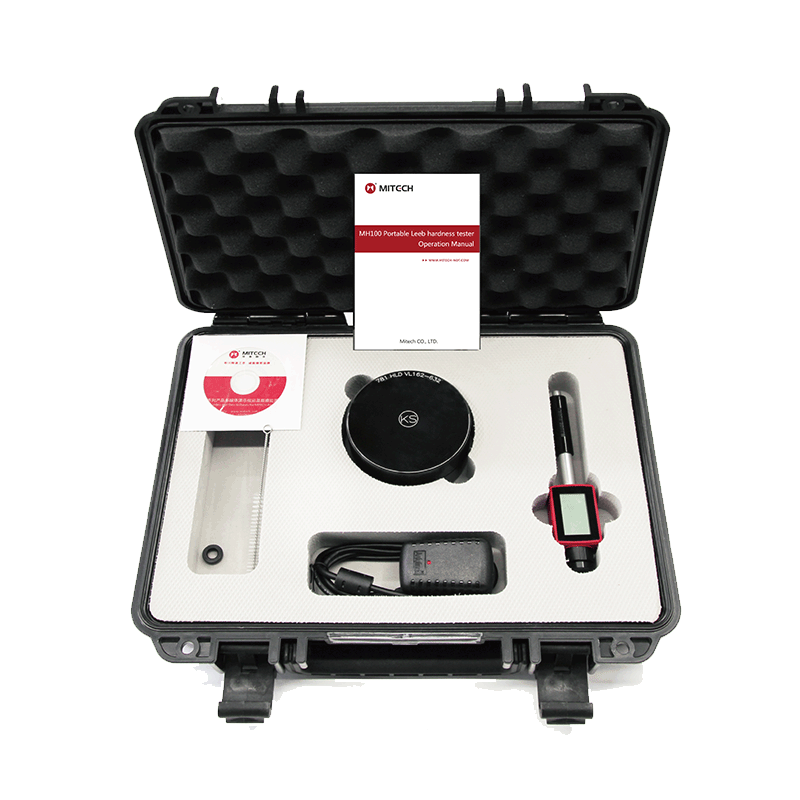

Mitech ABS Instrument Case The instrument case of Mitech series portable leeb hardness, length 35.5cm, width 19cm, height 11cm, weight of 1.5kg.
Adopt ABS engineering plastic, It has excellent peroformance like waterproof, shockproof, excellent heat resistance and low temperature resistance. It can effectively prevent oil, dust and corrosion in harsh environment. Its size is in accordance with the standards for aviation and train carrying (capable of putting under the seat and on the luggage rack), it is safe, reliable and stable.

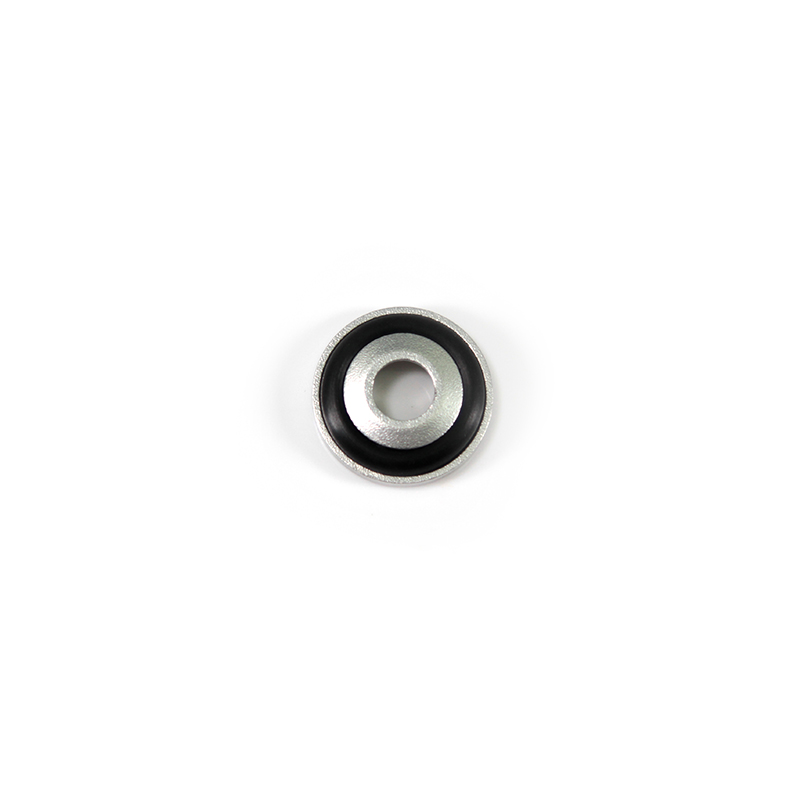

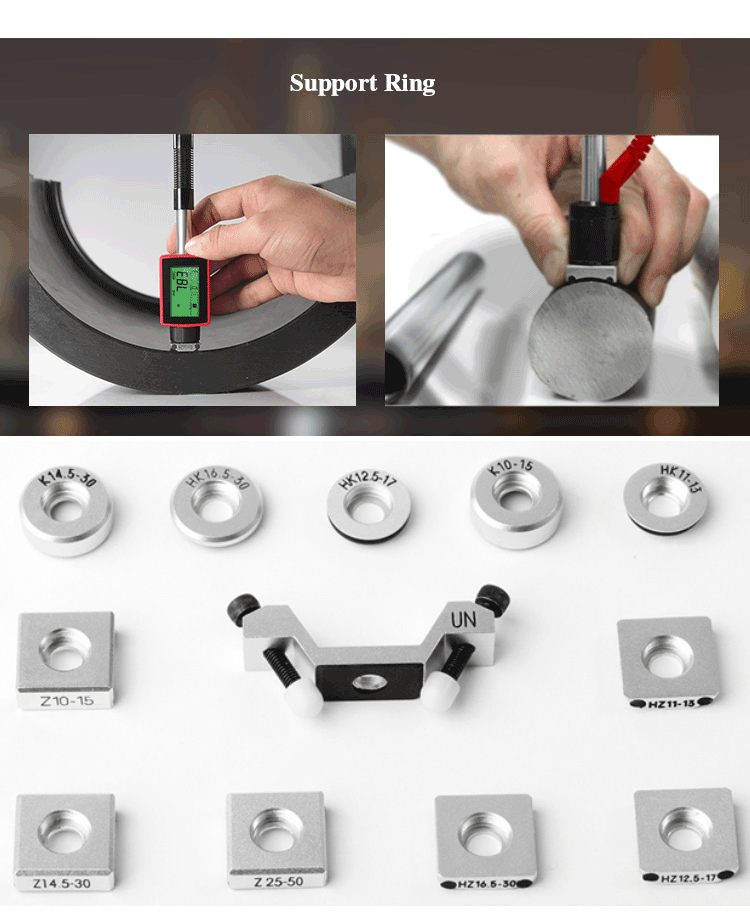

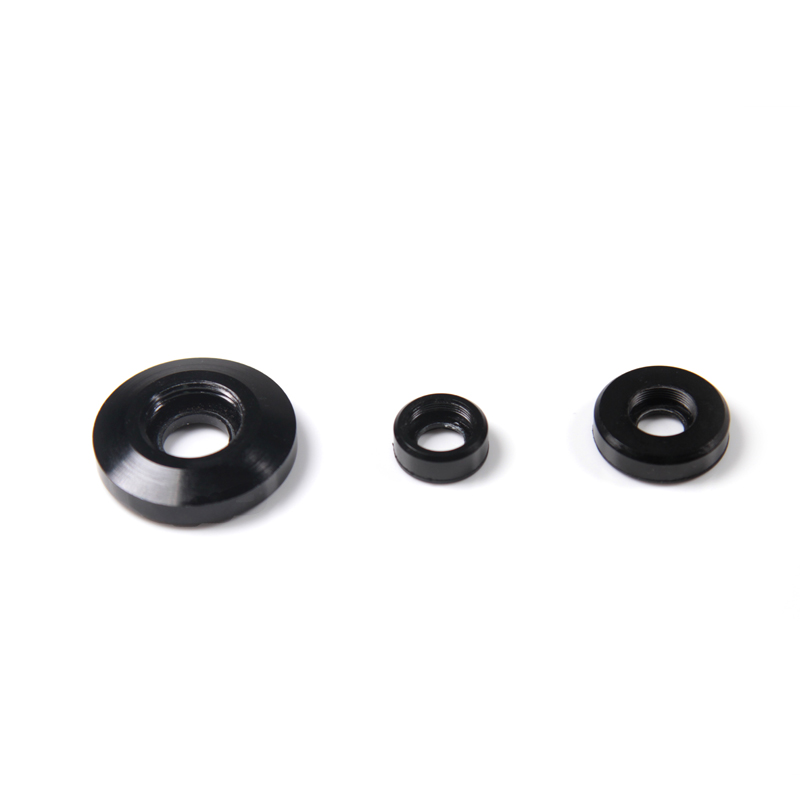

Small support ring Small support ring is the standard configuration used for curved workpieces.If the measured surface radius R is less than 30mm, the small support ring should be used during measurement. It can make the tested workpiece stable, the impact body and the workpiece well connected to ensure the accuracy of the hardness value of the tested workpiece.If the workpiece with special surface or others, it needs to use the specific support ring.

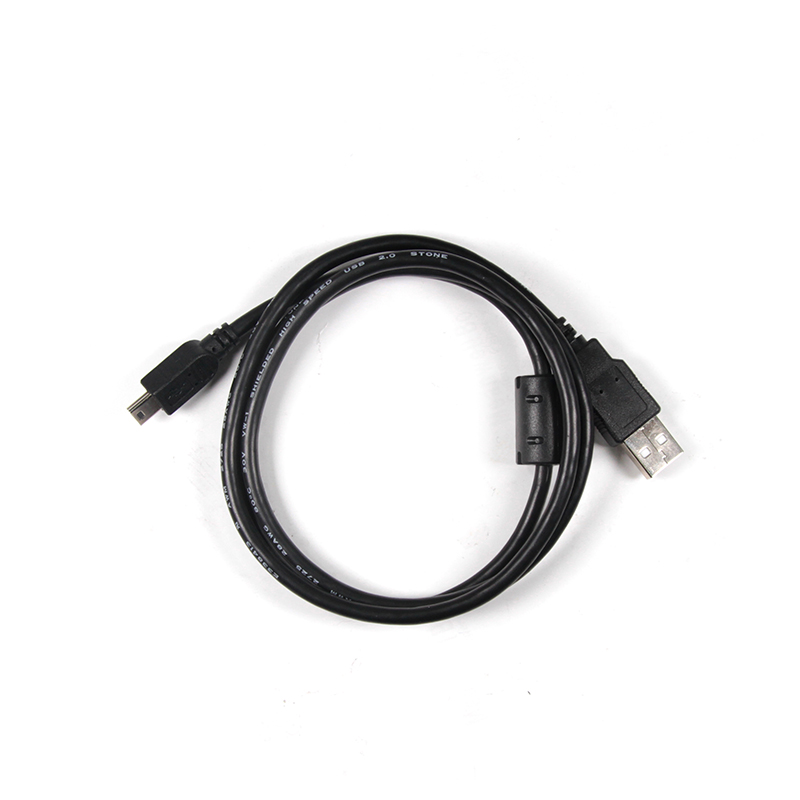

USB communication cable The USB communication cable for Mitech hardness tester is used to connect the PC with the main unit to realize the applciations of computer communication, analysis and data storage.

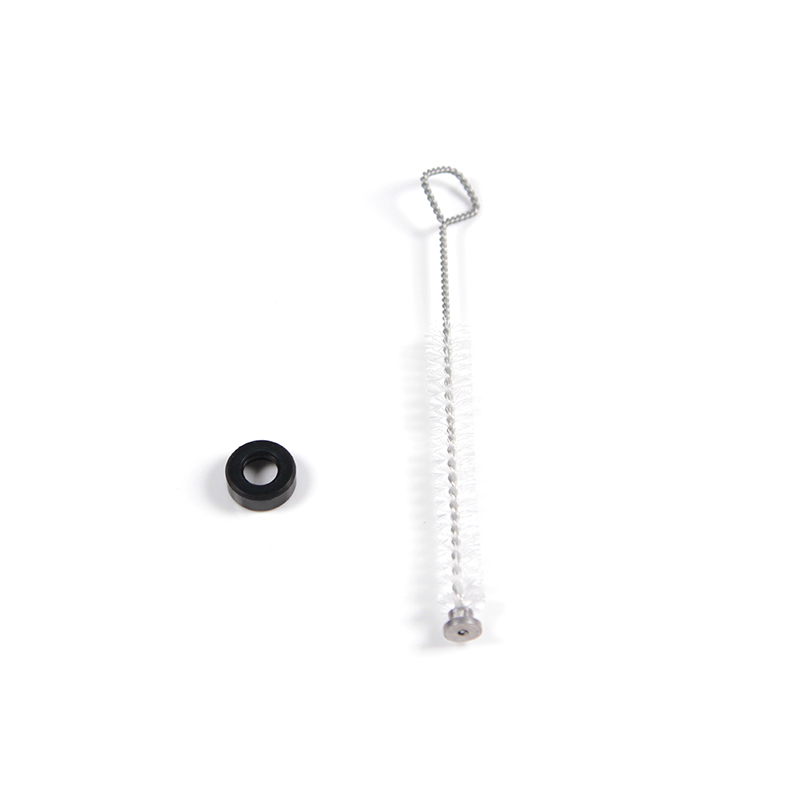

Nylon brush (A) The Mitech hardness tester special-used nylon brush A, mainly used for cleaning the inner wall of the impact devices except for the G type impact device. -

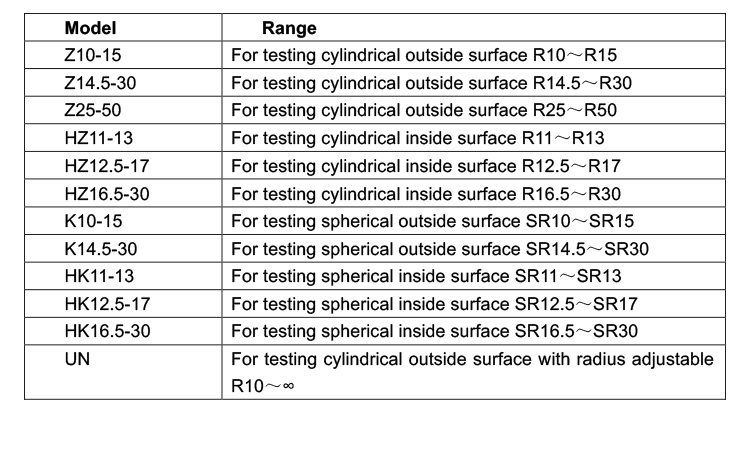

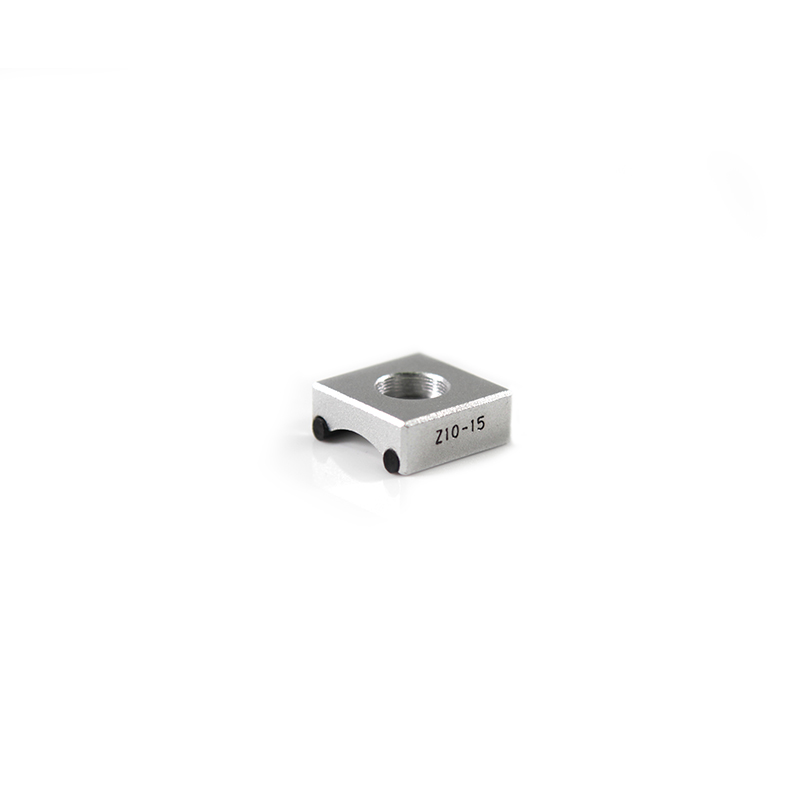

Support ring Z10-15 Support ring Z10-15, suitable for outside cylindrical surface testing with R10～R15,it can replace the standard support ring.

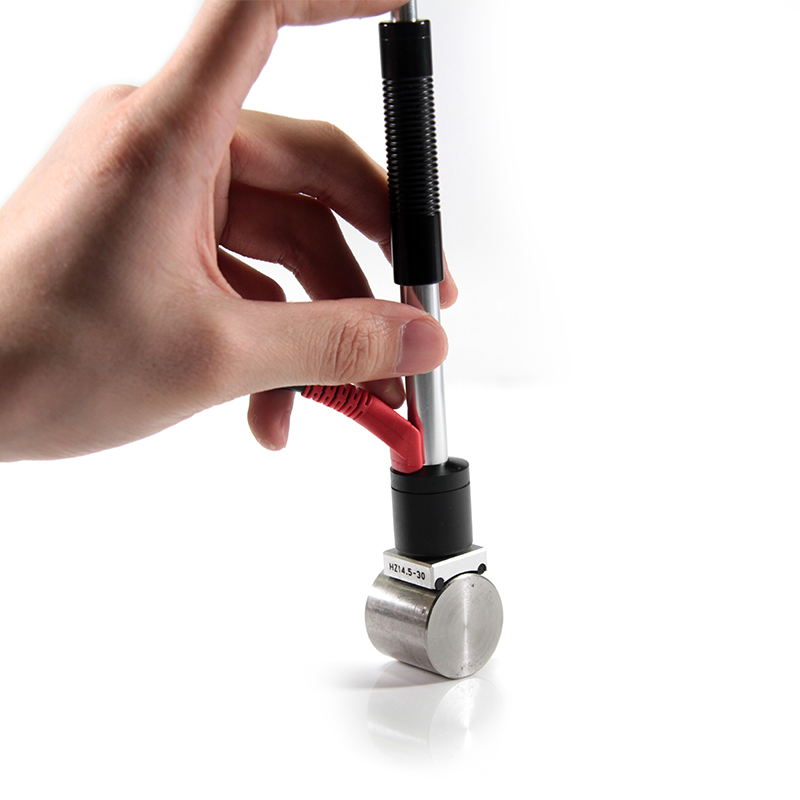

Support ring Z14.5-30 Support ring Z14.5-30, suitable for outside cylindrical surface testing with R14.5～30,it can replace the standard support ring.

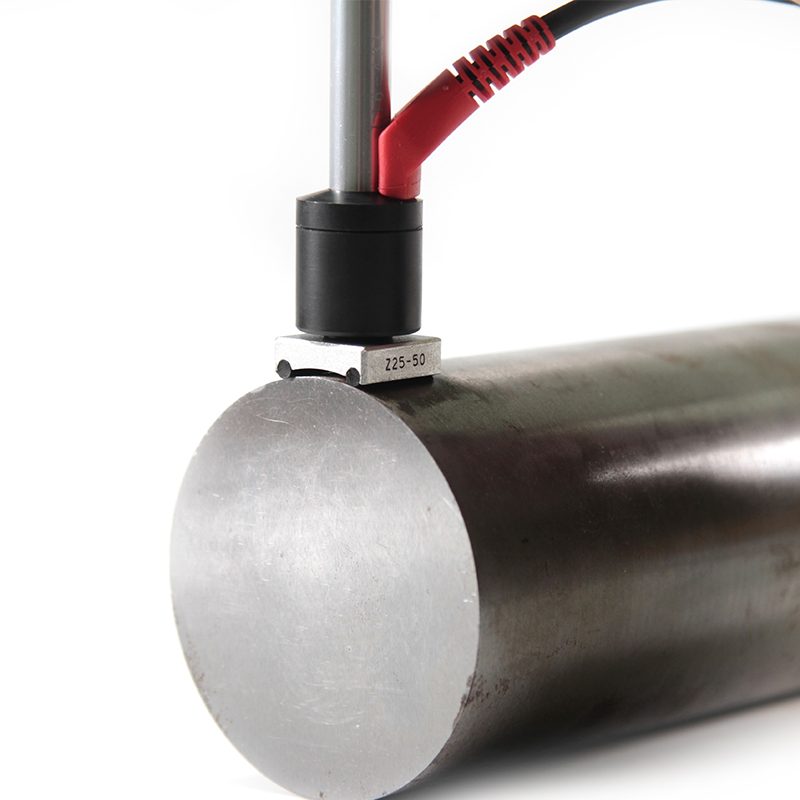

Support ring Z25-50 Support ring Z25-50, suitable for outside cylindrical surface testing with R25～50,it can replace the standard support ring.

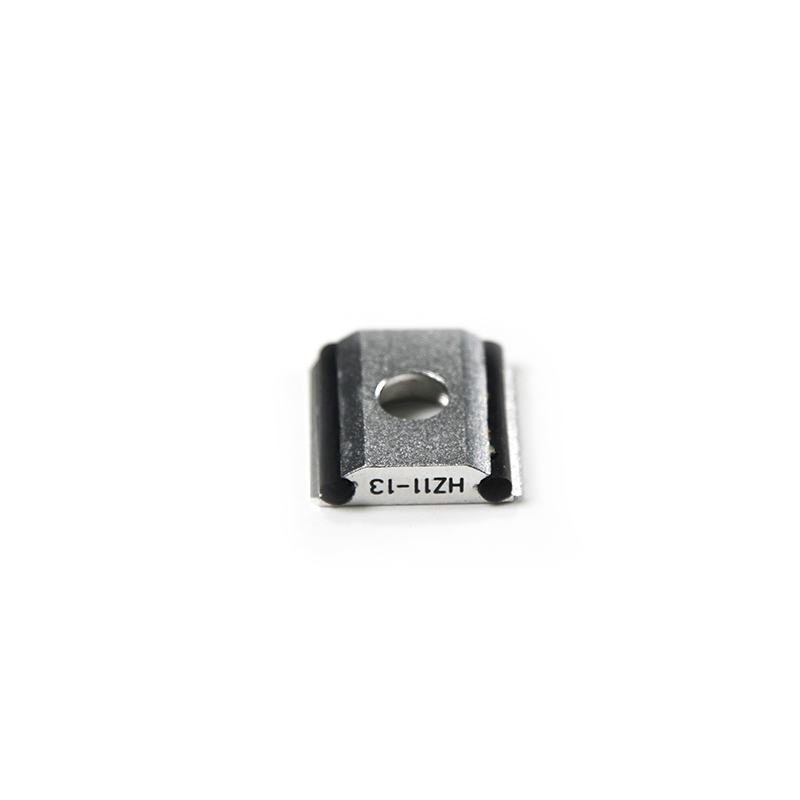

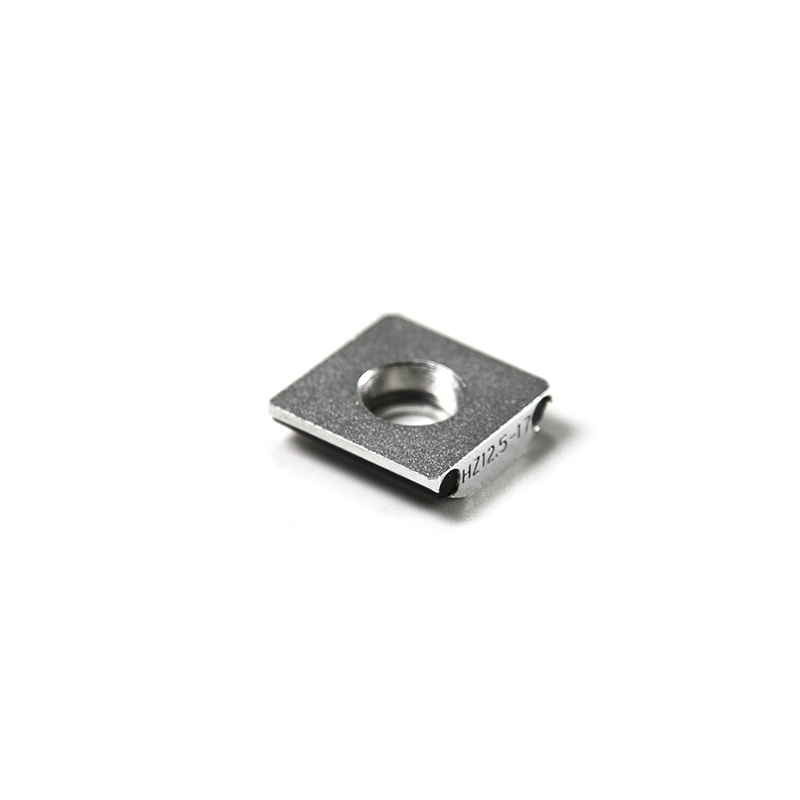

Support ring HZ11-13 Support ring HZ11-13, suitable for inside cylindrical surface testing with R11～13,it can replace the standard support ring.
Support ring HZ12.5-17 Support ring HZ12.5-17, suitable for inside cylindrical surface testing with R12.5～17,it can replace the standard support ring.

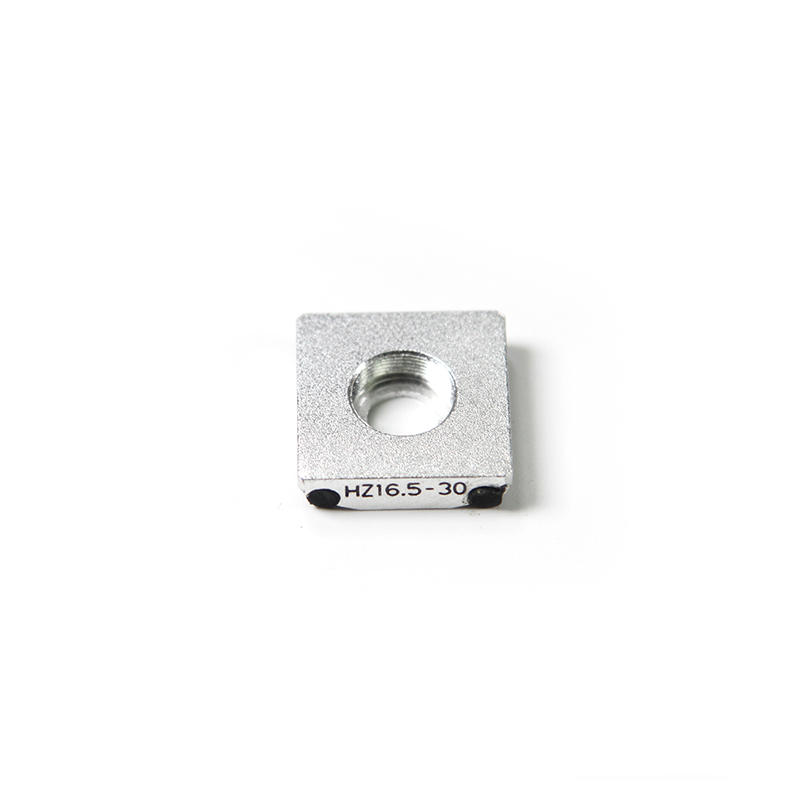

Support ring HZ16.5-30 Support ring HZ16.5-30, suitable for inside cylindrical surface testing with R16.5～30, it can replace the standard support ring.

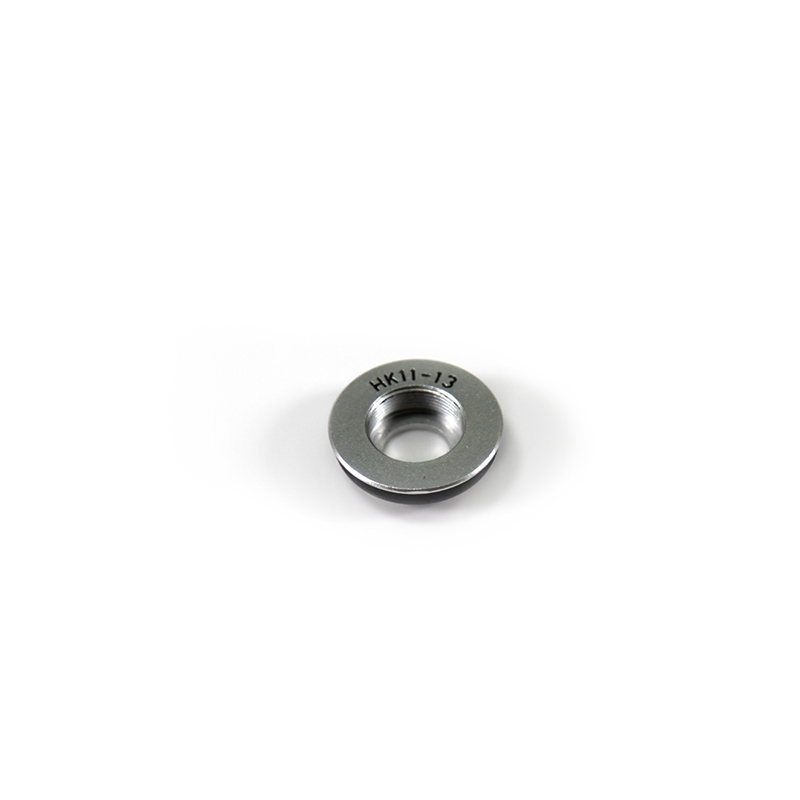

Support ring HK11-13 Support ring HK11-13, suitable for inside sphercial surface testing with SR11～13, it can replace the standard support ring.

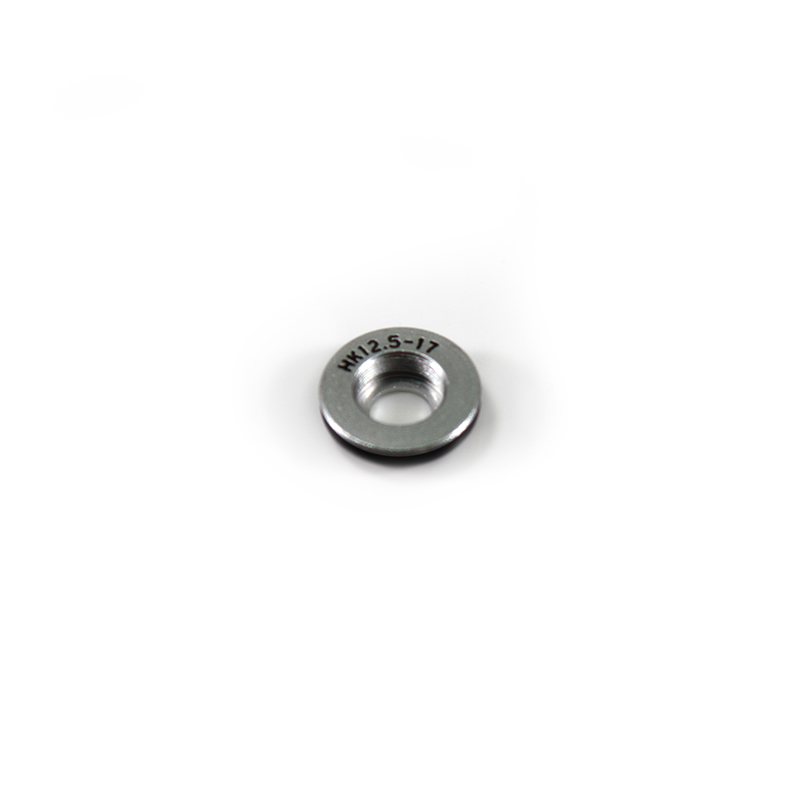

Support ring HK12.5-17 Support ring HK12.5-17, suitable for inside sphercial surface testing with SR12.5～17, it can replace the standard support ring.
Support ring HK16.5-30 Support ring HK16.5-30, suitable for inside sphercial surface testing with SR16.5～30, it can replace the standard support ring.

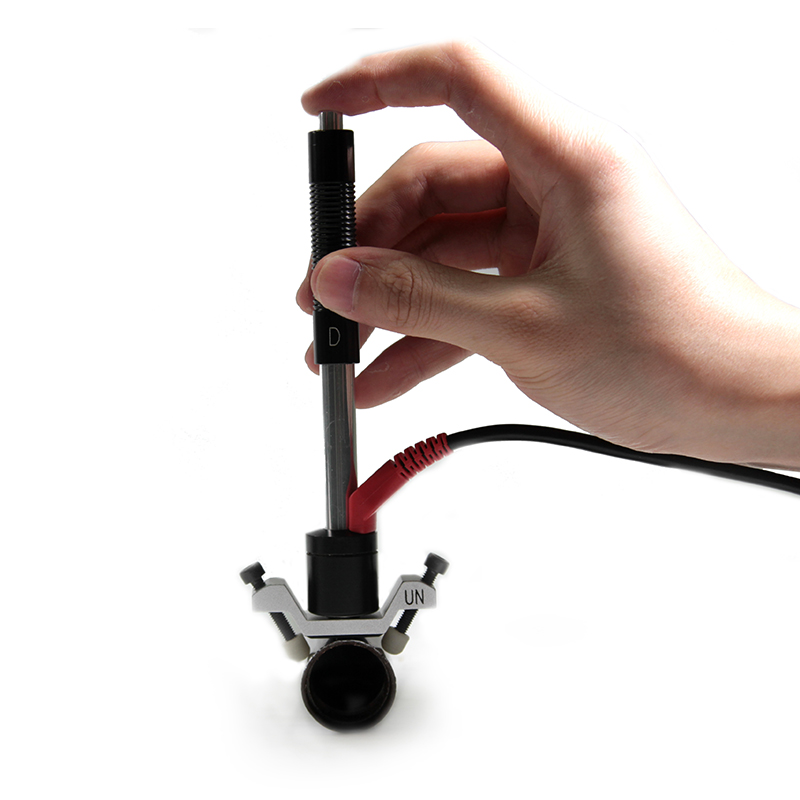

Support ring UN Support ring UN with adjustable radius,suitable for outside cylindrical surface testing, it can replace the standard support ring.
